Mini Indexing Machine Drilling Attachment DIY Tool Metal Lathe Wood Modelmaking Woodworking Lathe

R 5,025.39
Unit price per
Save R 5,025.39

Tax included.

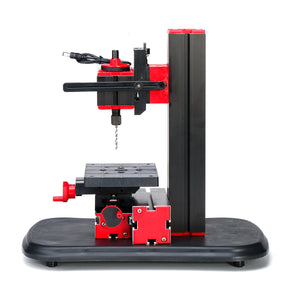

Mini Indexing Machine Drilling Attachment DIY Tool Metal Lathe Wood Modelmaking

Stand of micro-machine base plate: PP plastic material, the appearance of soap, with a stair outline, beautiful appearance, the size is 340*210mm. Equipped with 4 rubber feet, there is a gap between the rubber feet and the plastic feet to play a role in vibration damping. There are 2 mounting holes on the base plate, with 2 single-hole slot nuts and screws to fix the machine.

Specification:

Speed: 20000 rpm.

Input voltage: DC12V

Current: 3A

Power: 36W.

Slider stroke: 35x50mm.

Chuck: 1-6mm.

Working table area: 120x100mm.

Features:

1. The materials that can be processed are very extensive, such as work wood, plywood, soft metal (aluminum, copper, etc.), engineering plastics, etc.

2. The color of the machine tool is composed of red and black, and the T-slot is used for connection. The locking connection block is a “å·?rdquo;-shaped metal part.

3. The operation is flexible, simple, can be converted into a hand drill or hand grinding, etc., tilt the slider, you can adjust the angle of the drill hole, with the use of indexing plate, can drill equally holes in the workpiece.

4. All the threads have copper inserts, strong and durable.

5. The small slider near the motor head contains aluminum alloy reinforcement plate, so that the motor head up and down activities are stable.

6. The power adapter has over-voltage, over-current, over-temperature protection.

Package Included:

1 x Metal lathe with stand

2 x Power cable

7 x Accessories

1 x Warranty card
