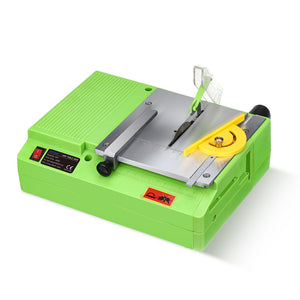

Minleaf ML-MS1 220V 480W Mini Portable Table Saw Multifunctional Handmade Woodworking Bench Saws Cutting Tool
Description:
This is an accuracy mini table saw, mainly used in cuting wood. After the blade changed, it can be
used in cuting mctal.
ML-MS1 Instruction: Click Here to Download
Specifications:
Brand: Minleaf
Model: ML-MS1
Item: Mini Table Saw
Voltage: 220V
Frequency: 50/60Hz
Input power: 480W
No-load Speed: 800r/min
Blade diameter: 60mm
Max cutting depth: 13mm
Blade inner diameter: 8mm
Features:
1. DIY multifunctional mini table saw
2. stell frame and aluminum alloy panel design, durable no deformation ensure the flatness and high quality cutting
3. maximum rotating speed up to 8800RPM provinding ultra strong cutting power but low noise, you can use it just at home
4. 60mm alloy saw blade with high concentricity and 13mm maximum cuting thichness ensure the cutting surface flat
5. Equipped with the ruler and backer in the cutting desk, pecisely cutting will be easier and ensure safety as well
6. Equipped with 7 class power adapter enable you to adjust the rotating speed easily to meet different cutting speed
7. Compact size easy to carry, perfect for DIY model makers
8. Its cutting material depends on the saw blade, the alloy circular saw blade can only cut wood, plastic, aluminum.
Blade replaced:
1. Tum of the power and pull out the plug.
2. Open the side cover with hexagon wrench.
3. Put the round wrench into the hole beside the blade. (Pic 3 in instruction)
4. Tum the blade carefully to make the wrench into the spacing hole of spindle. Use the hexagon wrench
to loosen the screw of saw blade platen (anticlockwise). Remove the screw and platen. (Pic 4)
5. Replace the blade (notice the direction). Put on the platen and tight the screw (clockwise).
6. Remove the wrench and assemble the side cover.
Operation:
- Cut in line
1. Cut different material with different blades
2. Put the sawtooth in right direction. The blade should be in firm pressure. The blade needs to
be replaced in time when blunt or broken.
3. Do not overexert on the cutting material. When feeling the speed down obviously, reduce the
push force to make the speed back to normal. Otherwise the machine would be overloaded
and damaged.
4. Make sure the hands do not touch the blade when pushing the material. If the hands t0o close
to the blade, use the backer instead.
5. Push the material in line when cutting. Otherwise it would be resisted, and the accident may
happen.
- Use the angle backer to cut
1. Use the angle backer to cut with angle
2. Adjust the angle backer to make the pointer in the right place you need. Tight the screw.
3. Put the angle backer back to the groove of working table.
4. Put the material close to the angle backer. Slip the material together with the backer.
Attention:
- Before you use this machine for the first time, read all the instructions carefully.
- Check up the complete package first. Open the package and put the machine on the flat table.
- Know the important parts of the machine according to Pic 1.
- Keep the machine maintenance and repair after operation. Clean the elips and add lubricant
oil. Pull out the plug and keep it well if long term without use.
Package included:
1 x DIY Mini Table Saw
1 x Hexagon wrench
1 x Drive belt
1 x Angle backer
