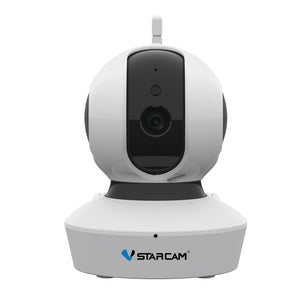

VStarcam C23S 1080P Wireless IP Camera PTZ WiFi Network Security CCTV Home Baby Monitor
Tax included.
Features :
12pcs LED, IR distance 10M. Lens 3.6 mm wireless security camera with memory card Slot.
Support ONVIF 2.0, RTSP protocol.
WPS one key setup WiFi, acoustic wave wifi setting.
Multi-stream:1080P/25fps+720P/25fps+VGA/25fps+720P@1fsJPEG snapshot(NOTE:it just support 640*480 in firefox,goole chorome.It will be 1960*1080P in IE BROWSER.)
Two-way audio(Note:Audio is bad), Remote Pan/Tilt rotate.
Wi-Fi/802.11/b/g/n,support dynamic IP.
Motion detect:Send email alert, FTP upload,record video into sd card when alarm triggered.It won't send pictures to your email when alarm triggered.
IOS and android Smartphone supported (don't support windows APP).
Multi-language, Firefox, Safari, Google browser.
Pan:270 degree, Tilt: 70degree, auto cruise.
Specification :
| System | Operation system | Embedded Linux OS |
| DDNS | Free DDNS | |
| Control protocol | ONVIF 2.4 protocol, high interoperability | |
| Processor | Hisilicon processor, built-in ARM926@Max. 440MHz and a high-speed video co-processor. | |
| Reset | Long press for 15 seconds to restore back to factory settings | |
| Online visitor | Support 4 visitors at the same time | |
| Collection | Image sensor | 1/3inch 1080p Progressive Scan CMOS (Ov2710) |
| CMOS | Support AWB, AGC, BLC | |
| SNR | ≥39dB | |
| Minimum Illumination | 0.8Lux/F1.4 (Color mode), 0.3Lux/F1 (B&W Mode) | |
| Lens | 3.6mm@F1.4/56.14° | |
| Night vision | Dual Filter, IR-Cut, 9pcs 850nmφ5mm LED | |
| IR irradiation distance: 5-10m | ||
| Video | Encode format | H.264 main profile@level: 4.0/Motion-JPEG/JPEG |
| Video coding process | Multi Stream: 1080p/15fps+720P/15fps+VGA/15fps+720P@1fsJPEG snapshot | |
| Resolution | 1080P/720P/VGA | |
| Bit Rate | 128-4096kbps | |
| Maximum frame rate | 15fps | |
| Image adjustment | Contrast/Brightness/Saturation/Hue | |
| Audio | Input | Built-in -48 dB microphone |
| Output | Built-in speaker(8Ω1W) | |
| Sampling frequency / width | 8KHz/16bit | |
| Compression standard | ADPCM/32kbps | |
| Network | Ethernet | 10Base-T/100Base-TX, RJ45 connector |
| Protocols | TCP/IP, HTTP, TCP, UDP, DHCP, DNS, NTP, RTSP, P2P, etc | |
| Wireless LAN | IEEE802.11b/g/n | |
| Wireless LAN Frequency | 2.4-2.4835GHz | |
| Wireless LAN security | 64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption | |
| Pan-tilt | Pan-tilt | Pan: 280°, Tilt: 80° |
| Preset position | PC APP: support 16 positions, phone APP: support 5 positions | |
| Memory | Socket | TF Push-push socket, Maximum support 128GB |
| Alarm | Alarm Trigger | Motion Detect |
| Physical | Rated voltage | DC 5V±5% 2A |
| Environmental | Power consumption | Related power: 3.0W(IR LED on) |
| Operating condition | Temperature: -10 to +50?? humidity: <90% | |
| Weight | Gross: 295g(Note: in kind prevail) | |
| Package size | 195*140*127 mm(L×W×H) |
Package includeds :
1 x VStarcam C23S 1080P IP Camera
1 x Power Adapter (EU / US / AU / UK Plug for Optional~)
1 x English User Manual
1 x Set of Installation Accessories
Details pictures :
