48MP 2K 1080P 60FPS HDMI USB Industrial Electronic Digital Video Soldering Microscope Camera Magnifier for Phone PCBTHT Reparing
Tax included.
Features:
Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 48 MegaPixel
Video format: MP4(for TF card)
Video recorder: 2K@30FPS, 1080P@60FPS
HDMI Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS
White Balance: Auto/Manual
Light: Auto/Manual
Exposure: Auto/Manual, value adjustable
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Japanese/German
Line: different color,5 horizontal line , 5 vertical line,any positions
Specification:
Image sensor: 48 megapixel CMOS sensor 1/2.33 inch
Effective pixel: 48 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:C/CS
Video format: MOV
Digital Zoom:Support
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
USB interface:Standard usb2.0 interface (Type B)
Input Voltage: DC 12V
CCD Industry microscope camera C-mount lens glass 5X-150X Camera Zoom Eyepiece Magnifier for HDMI USB 4k Microscope
Working distance: 50mm-350mm
Field of view: 3.1mm-66mm
zoom c-mount Lens
zoom ratios: 5:1
Magnification Power by 0.11X - 2X
Size: 100mm(L) * 28mm(DIA)
Ring adapter: 35mm

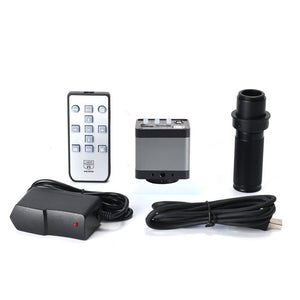

Package included:
1 x 48MP Microscope Camera
1 x Power Supply
1 x USB Line
1 x Software DISC
1 x Remote Control
1 x 120X Zoom Lens
Details pictures:
