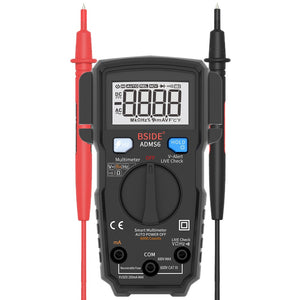

BSIDE ADMS6 Digital 6000 Counts True RMS Multimeter Tester Autoranging Multimeter With V-alert Test

BSIDE ADMS6 Digital 6000 Counts True RMS Multimeter Tester Autoranging Multimeter With V-alert Test

  • Save R 828.09
Tax included.
SKU:

Features:

Display: 6000 counts
DC/AC Current Measurement
DC/AC Voltage Measurement
Resistance/Continuity/Frequency Measurement
Automatic measuring range
Full measuring range overload protection
True RMS
Auto power off
Backlight
Low Battery indication
Date hold
V-alert Test(dangerous voltage alarm)
Live wire and null wire test

Specifications:

Max voltage allowed at the measuring end.:600V DC or 600AC(RMS).
Work height: max 2000m
Display:LCD.
Max display value: 5999 digits.
Polarity indication:Self-indicating, ‘-’ means Negative polarity. Over-range display:‘0L’ or ‘-0L’.
Sampling time:The meter figures show about 0.4 seconds
Unit display:Function and battery unit display.
Automatic Power off time: 15 minutes
Operational power:1.5Vx2 AAA battery.(not included)
Battery low voltage indication: LCD display symbol.
Temperature coefficient:Less than 0.1 x Accuracy / ??/span>
Operational temperature and humidity : 0~40 ??32~104??/span> 45%-80%RH
Storage temperature and humidity:-10~60 ??-4~140?? 45%-80%RH
Boundary dimension:139×83×36mm
Weight: ~160g


1. Voltage DC

Range Resolution Accuracy
600V 0.1V ±(0.8%+3counts)
Sensitivity: min 0.5V DC voltage Input impedance: 1MΩ
Max input voltage:600V DC&AC (RMS)

2. Voltage AC

Range Resolution Accuracy
600V 0.1V ±(1.2%+5counts)
Sensitivity: min 0.5V DC voltage Input impedance: 1MΩ
Max input voltage:600V DC&AC (RMS)
Frequency range: 50Hz~60Hz, true RMS response.

3. Resistance

Range Resolution Accuracy
6000Ω 1Ω ±(1.2% +3counts)
Overload protection:600V DC or AC(RMS)

4. Current DC

Range Resolution Accuracy
200mA 0.1mA ±(1.2%+3 counts)
Sensitivity: min 0.5mA DC current.
Overload protection:600V/200mA self-recovery fuse. Frequency range: 50Hz~60Hz.

5. Current AC

Range Resolution Accuracy
200mA 0.1mA ±(1.5%+5counts)
Sensitivity: min 1mA AC current.
Overload protection: 600V/200mA self-recovery fuse. Frequency range: 50Hz~60Hz.

6. Frequency

Range Resolution Accuracy
1000Hz 1Hz ±(1.0%+5counts)
Frequency range: 40Hz~1000Hz.

7. Measure Continuity

Function Accuracy

buzzer		 If the resistance is <30Ω,
the continuity beeper
sounds.
Overload protection:6000V DC or AC(RMS)

8. V~Alert

Range Explanation
Low file Show -EF-, green V~Alert light continue light on, the beep sounds
Hgh file Show -EF-, red NCV light continue light on, the buzzer sounds an alarm
at a higher frequency
Package Includes:

1 x 1 x Pair of Probes
1 x English User Manual
1 x Package Box

Detail Pictures:
