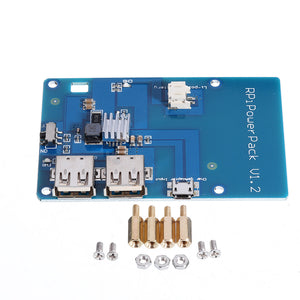

Lithium Battery Power Expansion Board for Raspberry/Mobile Phone
Tax included.
Feature:
It is suitable for lithium battery mobile power, and can make the motherboard work offline for up to 9 hours.
There are two USB-A ports on the board, one can power the Pi motherboard. If needed, another can power devices such as embedded LCD screens.
Integrated an imported lithium battery charge / boost management chip. with your own battery and weigh only 80g.
Parameters:
Battery capacity: 3800mAH
Large discharge current: 1.8A
No-load output voltage: 5.1V ± 0.1V
Standard charging current / voltage: 1.0A@5.0V
Lithium battery full cut-off voltage: 4.18V-4.2V
CHG LED function:
On: The charger performs constant current charging.
Off: The charger performs floating charging until the lithium battery is fully charged.
ON LED function:
On: USB-A interface outputs 5V
Off: No voltage is output from the USB-A interface.
Package includes:
1 x Power Expansion Board
