Waveshare Electronic Paper e-Ink Screen e-Paper Driver Board Onboard ESP8266 Module Wireless WiFi

Note: This product does not contain any electronic ink screen.



Product introduction:



The electronic ink screen network driver board can obtain picture information from a PC or a smart phone via WiFi, and display the information through an electronic ink screen.

Support for development, can be used like other boards.



Features:



Onboard ESP8266, support for development

Provide HTML host computer program factory built-in electronic ink screen driver (open source)

Support Floyd-Steinberg dithering algorithm to get more color combinations and better shadow rendering of original images

Support a variety of common image formats (BMP, JPEG, GIF, PNG, etc.)

Easy to integrate into a variety of web applications

Provide a complete supporting information manual



Parameter:



WiFi standard: 802.11b/g/n

Communication interface: 3-wire SPI, 4-wire SPI (default)

Working voltage: 5V

Working current: 50mA ~ 100mA

Dimensions: 29.57mm x 48.26mm

Through hole diameter: 2.9mm

Information includes:



User manual

Schematic

Sample program

Development materials

Package includes:

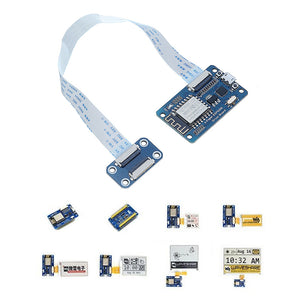

1 x e-Paper ESP8266 Driver Board

1 x e-Paper Adapter

1 x 24PIN FFC line
