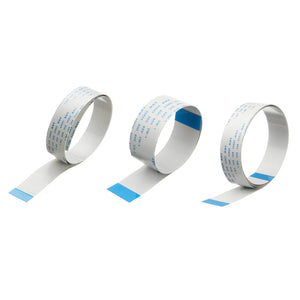

3D Printer FFC FPC Flexible Display Cable for Lerdge Board

3D Printer FFC FPC Flexible Display Cable for Lerdge Board

  • Save R 750
Tax included.
SKU:
Overview:

0. FFC soft cable 0.5 pitch 36pin, the direction is of the same direction
1. P = bit = core = pin (number of copper)
2. Cable length optional. 30cm, 70cm and 100cm.
3. Spacing: the distance between the two needle center. If uncertain, measure the bus width (unit: mm)
    Spacing algorithm: bus width / (number of pins+ 1)
4. Direction (check the ends of the cable): A with the same direction (metal surface in the same side)
5. Test with Lerdge board. Use the board test with the 2 meters cable (without shielding tape), and with the cable winding the stepper motor. The touch screen display operation is normal, no interference phenomenon, the test passed.

Package Included:

1 x 100/70/30cm Display Cable
