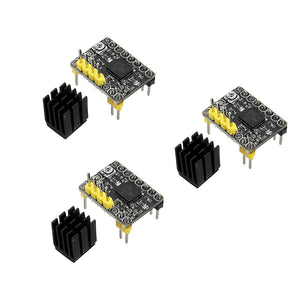

3Pcs/Pack BIQU TMC2130 Stepper Motor Driver Module with Black Heat Sink 3D Printer Part

R 1,308.38
Unit price per
Save R 1,308.38

Tax included.

Introduction:

The TMC2130 is a high performance two-phase stepper motor driver chip with a standard SPI interface and a simple step/dir interface. Continuous output current up to 1.2A, can withstand 2A peak current in a short time, very low noise, high load drive does not lose step.

Specifications

1, the subdivision is up to 256;

2. Support SPI interface control;

3. It will not lose the step when driving with high load;

4. The logic interface level is: 3-5V;

5. Input voltage range: 4.75-46V DC;

6, two-phase stepper motor single-phase current 1.2A (peak 2A) motor operating current is adjustable;

7. Default current is 0.76A, maximum current is 2A
8. Quantity: 3

BIQU TMC2130 Stepper Motor Driver Module with Black Heat Sink 3D Printer Part

Note:

* The power should be turned on when measuring voltage, not just connected to USB.

* Do not connect the motor when measuring voltage, otherwise it will easily burn the drive.

* Please pay special attention to the direction, do not insert the opposite

Package Included:

3 x Stepper Motor Driver Module with Heat Sink
