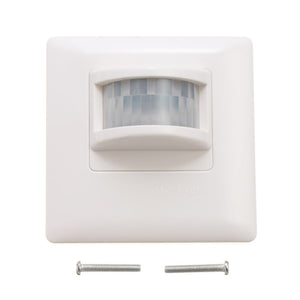

Milight Infrared PIR Sensor Human Body Induction Automatic Light Switch AC180-240V
Tax included.
Specification:
Voltage:AC180-240V 50Hz
Current:0.01A
Sensor distance:8M(max.)
Control distance:30M
Sensor angle:110°
Installation height:1.2-1.5m
Dimension:86*86*27mm
Feature:
PIR sensor switch a wireless switch, easy to use and installation without wiring with the lights, the sensing distance can reach 8 meters.
The PIR lamps have the function of automatic signal transiting.
The lamps can send each other signal within 30 meters, which makes the sensing distance limitless
How to use:
1.Preparation mode
The red indicator will be on when the switch is connected to power,it turns into“ preparation mode ”,after 1 min,the red indicator will be gone,the “ preparation mode ”is finished,the switch stars to work properly.The red
indicator will turn on again when it detects the movement of objects
2.Link/Unlink
Link:
When the switch is connected to power,press "SET" one time,the red indicator will blink slowly,you are ready to link the lights to switch,switch off the power of the lights which you want to link,turn to them again after 3 seconds,the lights will blink 3 times slowly,the link is done,press "SET" once again if you don't want to link more lights.
Unlink:
if you want to unlink the lights which you have linked,do as below:
When the switch is connected to power,hold "SET" for a while,the red indicator will blink quickly,you are ready to unlink the lights to the switch,switch off the power of the lights which you want to unlink,turn on them again after 3 seconds,the lights will blink 10 times quickly,the unlink is done,press "SET" once again if you don't want to unlink more lights.
3.Switch settings:
There are 6 mini switches on the switch,we divide them into 3 zones according to the sequences from left to the right,each mini switch u can push on and down,we use "1" for up,"0" for down.
A.Zone 1(mini switch 1 and 2)stands for the "Lasting Time",which means the lights will be on for how long when the switch senses the movement of objects.
B.Zone 2(mini switch 3 and 4)stands for the "Sencing illumination",which means the lights will be on under how much lux when the switch senses the movement of objects.
C.Zone 3(mini switch 5 and 6)stands for the "Night Light Mode",which means the light will be on all the time as night light when there is no movement of objects.
Package included:
1*Milight PIR wireless sensor switch
