8 Gang Waterproof Car Auto Boat Marine LED Rocker Switch Panel Circuit Breakers
Tax included.

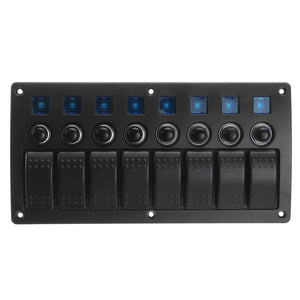

Name:8 Gang LED Rocker Switch Panel
Model:E67402
Specifications
Color:Blue/Red/Green
Material:environmentally friendly ABS flame retardant material
Input Voltage:12-24V
Output Voltage:12-24V
Nominal Voltage:12V 20A/24V 10A
Max Power 240W
Maximum Load AC 125V/10A, 2 V/20A 24V/10A
Operating Temperature:-25??-80??/font>
Waterproof Rating:IP66
Features
-Multiple protection: overheating protection. Output short circuit protection, overload protection, reverse polarity protection.
-Suitable for most DC 12V-24V cars, UTV / ATV, truck, trailer, RV, caravan, bus, marine boat, yacht, plane, etc.
-Usage:For headlight switch, fog lamp switch, car refrigerator switch, car switch, horn switch, pump switch.
-It can be used in the environment with a minimum temperature of -25??and a maximum temperature of 80??
-The switch panel with 8 groups of switch groups and illuminated rocker switch.
-Can be installed horizontally or vertically (horizontal optional)
Installation
RED wire connect to positive pole of the battery. BLACK wire connect to negative pole of the battery. METAL PLACE connect to plus pole of any electrical equipment.
Note
-Please allow a bit error due to manual measurement. please make sure you do not mind before you bid.
-The color may have different as the difference display, please understand.
Package Included
1 x LED Rocker Switch Panel
1 x Rocker Switch Paster
1 x Plastic Mounting Frame
6 x Screws
