2Pcs 50A 600W Battery Quick Connect/Disconnect Wire Harness Plug Connector Kit Winch Trailer
Tax included.
Specification:
Connector Size: 1 7/8 x 1 3/8 x 1/2 inches.
Connected Set Size: 3 3/16 x 1 3/8 x 1/2 inches.
Operating Temperature Range:-4°F-221°F / -20°C-105°C.
Medium Withstanding Voltage: 2200 DC.
Vibration Resistance: Excellent.
Impact Resistance: High.
Connect/Disconnect Cycles: 10,000 Times.
Weight: 40g

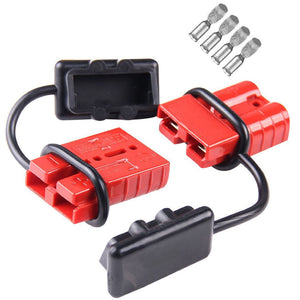

Package Included:
2x Connector Ends
4x Terminal pins
2x Rubber Boot Caps
Features:
It is made of durable polycarbonate allowing for over 10,000 connect/disconnect actions.
The bottom of the devise features a fitted rubber boot to protect against dust, moisture and corrosion.
Both ends are suitable for connection to the power or load side because of its identical connectors.
This connector kit allows for quick and convenient connect/disconnect of power from a winch or from another electrical devices such as a remote battery charger, trailer, etc.
The ends are made to connect only one way, making itimpossible to connect the wrong polarities to one another. The connectors are ideal for 12-36 volts DC low-voltage and direct current use.
The heavy duty components are ideal for low or medium current use. Featured with 0.25" inner diameter, the terminal pins accept wire 6AWG, 8AWG, 10-12AWG.
It is very easy to use and install. Insert the wires into the terminal pins, then solder or crimp them. Insert the terminal pins into the connector housing and lock them in place.
