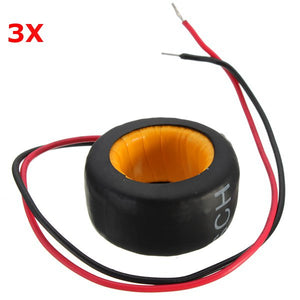

3pcs Precision AC Current Transformer Coil PZCT 50 A / 10mA
Tax included.
Description:
When the zero-sequence ground current, and electronic sampling device or relay protection device used in conjunction with the device element action to achieve protection or monitoring.
When the zero-sequence ground current, and electronic sampling device or relay protection device used in conjunction with the device element action to achieve protection or monitoring.
Feature:
Ambient temperature: Maximum temperature -20 ??~ + 60 ??/span>
Relative humidity: ≤95%
Voltage 150V ~ 240V (AC)
Frequency of 50Hz (harmonic 150 ~ 250 Hz)
Ambient temperature: -55 ??- + 85 ??/span>
Relative humidity: 40 ??<90%
Working range: 20Hz-20KHz
Insulation Rating: 0.1 (130 ??
Insulation resistance: 1000MΩ
Dielectric: 5000V / 1 min
Fire proof: accord VL94-VO level
Measuring current: 0-50A (R≤80Ω)
Output Scale: 1000/1
Accuracy: 0.1
Linearity: 0.1%
The linear range: 0-100A (RL≤100Ω)
Isolation voltage: 3KV
Operating temperature: -35 ??- + 70 ??br />Purpose: Current Precision Measurement
Package included:
3 x Precision AC Current Transformer Coil PZCT 50 A / 10mA
Measuring current: 0-50A (R≤80Ω)
Output Scale: 1000/1
Accuracy: 0.1
Linearity: 0.1%
The linear range: 0-100A (RL≤100Ω)
Isolation voltage: 3KV
Operating temperature: -35 ??- + 70 ??br />Purpose: Current Precision Measurement
Package included:
3 x Precision AC Current Transformer Coil PZCT 50 A / 10mA
