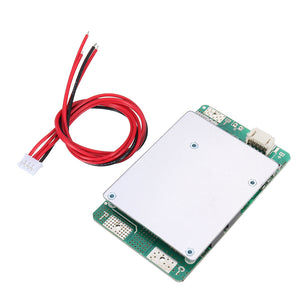

3S string 12V Continuous Current 100A Lithium Battery Protection Board For Inverter Car Start Power Board
Tax included.
Function:
Common Problem: Click here to open
Feature:
Package includes:
1 x Battery Protection Board
Common Problem: Click here to open
Overcharge protection
Over discharge protection
Overcurrent protection
Short circuit protection
Equalization function
Feature:
| Test items | Standard | |
| Voltage | Charging voltage | DC: 12.6V -15V CC/CV |
| Single-section equalization voltage | 4.2V | |
| Current | Single-phase equalization current | 44 MA |
| Working current | 80A-100A | |
| Large continuous discharge current | 150A | |
| Overcharge protection | Overcharge detection voltage | 4.275 V±0.025V |
| Overcharge detection delay time | 150-500 ms | |
| Overcharge recovery voltage | 4.075V±0.025V | |
| Overdischarge protection | Overdischarge detection voltage | 2.9V±0.1V |
| Overdischarge detection delay time | 50-150ms | |
| Overdischarge recovery voltage | 2.9V±0.10V | |
| Overcurrent protection | Overcurrent detection voltage | 150±30mv |
| Overcurrent detection current | 150A±0.5A | |
| Overcurrent detection delay time | 5ms-15ms | |
| Recovery status | Automatic recovery | |
| Short circuit protection | Detection status | External short circuit |
| Detection delay time | ≤50us | |
| Recovery status | Automatic recovery | |
| Internal resistance | Protection line (MOSPET) | ≤40mΩ |
| Temperature | Range of working temperature | -40 ~ +75??/span> |
| Storage temperature range | -40 ~ +90??/span> | |
| Size (L*W*H) | 82*51.4*8 MM | |
Package includes:
1 x Battery Protection Board
