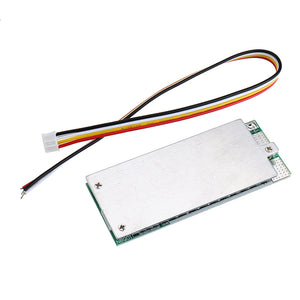

3S String 12V Ternary Lithium Battery Polymer Protection Board For Inverter UPS Battery Box Energy Storage Protection Board
Tax included.
Feature:
Common Problem: Click here to open
Package includes:
1 x Ternary Lithium Battery Polymer Protection Board
Common Problem: Click here to open
| Details | Specification | Unit | Remark |
| Discharge | Large discharge current | 100 | A |
| Instantaneous discharge current | 150 | A | |
| Charging | Charging voltage | 12.6 | V |
| Large charging current | 8 | A | |
| Overcharge protection | Overcharge detection voltage | 4.28±0.05 | V |
| Overcharge protection delay | 0.5 | S | |
| Overcharge release voltage | 4.08±0.1 | V | |
| Electricity balance | Battery balance detection voltage | 4.18±0.05 | V |
| Battery balance release voltage | 4.18±0.05 | V | |
| Battery balance current | 40±5 | mA | |
| Overdischarge protection | Overdischarge detection voltage | 2.6±0.1 | V |
| Overdischarge detection delay | 0.1 | S | |
| Overdischarge release voltage | 3.0±0.1 | V | |
| Overcurrent protection | Overcurrent detection voltage | 150 | mV |
| Overcurrent detection delay | 9 | mS | |
| Overcurrent protection current | 200±10 | A | |
| Overcurrent protection release condition | Disconnect load | ||
| Short circuit protection | Short circuit protection condition | External load short circuit | |
| Short circuit detection delay | 250 | uS | |
| Short circuit protection release condition | Disconnect negative | ||
| Temperature protection | Temperature protection | / | ??/span> |
| Internal resistance | Main circuit conduction internal resistance | ≤25 | mΩ |
| Self-consumption | Working current | ≤30 | uA |
| Sleep current (when the battery is over-discharged) | ≤10 | uA | |
| Operating temperature | Temperature range | -0.375 | ??/span> |
Package includes:
1 x Ternary Lithium Battery Polymer Protection Board
