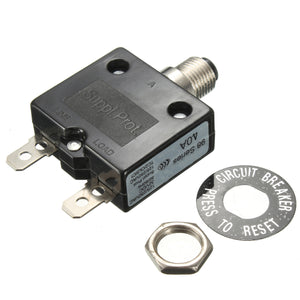

40A 125V/250V AC 50/60Hz Generator Overcurrent Overload Protector Thermal Circuit Breaker
Tax included.
Specifications:
Name: Overload Protector
Brand: KUOYUH
Rated current: 40A
Rated Voltage: 125/250V AC, 32V DC, 50-60HZ
Break capacity: 1000A x 125V AC, 200A x 250V AC
Pressure ability: 1500V AC for 1 minute, the leakage current is less than 0.5mA
Minimum Voltage: less than 0.25V
Reset time: within 60 second
Insulation resistance: 500V DC continuous for 5S, the insulation resistance will be more than 100MΩ
Weight: 35g
Certificate: UL,CSA,VDE, RoHS
Features:
- When the load exceeds the rated current, this switch reset button will automatically cut off the circuit, and thus play a role in protecting the line.
- This switch can be reset after a disconnect over a period of time, then you can press the reset switch to use it again.
Package includes:
1 x Overload Protector
1 x Screw ring
1 x Ring
