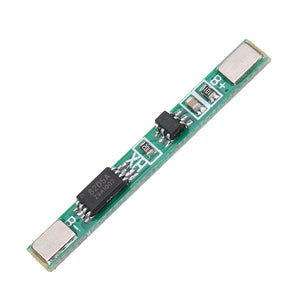

5pcs 1S 3.7V 2A li-ion BMS PCM 18650 Battery Protection Board PCB for 18650 Lithium ion li Battery

Specifications:



Overcharge detection voltage: 4.25 ± 0.05V

Overcharge release voltage: 4.23 ± 0.05V

Over discharge detection voltage: 2.45 ± 0.1V

Upper limit continuous current: 2A

Overcurrent detection current: 2.5A

Charging voltage: 4.2V

Product Size: 30 * 3.7 * 2.2MM

IC Components: DW01 + 8205A

The main function:Overcharge protection, over discharge protection, short circuit protection, overcurrent protection.



Wiring Instructions:



B +:  Connected to the battery positive.

B-:    Connected battery negative.

P +:  For the battery pack output input positive

P-:    For the battery pack output input negative



Package Included:



5 x 1S 3.7V 2A li-ion BMS PCM 18650 Battery Protection Board
