FC-6S Fiber Optic FTTH Tool Kit Fiber Cleaver Power Meter Visual Finder Locator
Tax included.
Features :
Self calibration.
More than 48 hours continuous working time.
Linear Display (mW) and Logarithmic display (dBm) show on the same screen.
Support FC/SC/ST interface and quick switch.
Auto switch.
Backlight available.
Specification :
Test Range: -70 to +3dbm
Probe Type: InGaAs
Wavelength Range: 800~1700nm
Standard Wavelength(nn): 850/980/1300/1310/1490/1550/1625
Display Resolution: Linear Display 0.1%; Logarithmic display 0.01dBm
Working Temp(??: -10 to +60??br />Storage Temp(??: -25 to +70??br />Auto Switch-off Time(min): 18min
Battery working period: ≥48hrs
Size(mm): 162x75x27
Power: 3pcs AA rechargeable lithium battery or chargable Li-battery (Battery not included.)
FC 6S cutter
Applicable bare wire diameter: 125μm
Applicable fiber core number: single core (φ0.25 & 0.9mm) ~ 12 core ribbon core wire ~ 2.5 skin line
Fiber cutting length: 9-16mm (φ0.25), 10-16mm (0.9mm)
Dimensions: 63 x 76x* 63mm
Visual Fault Locator
Output wavelength: 650mm
Output light power: >1mW
Optical connector: universal connector
Operating temperature:0 to +60??br />Storage temperature: -20 to +70??br />Power supply: 2 x AA batteries (Battery not included.)
Dimension: 175mm x 26mm

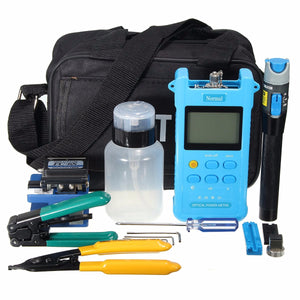

Package includeds :
1 x Optical Power Meter
1 x Visual Fault Locator
1 x Fiber Cleaver FC-6S
1 x CLAUSS Fiber Optic Stripper/Model: CFS-2
1 x Coating Layer Stripping Pliers
1 x Screwdriver
1 x Black Carry Bag
1 x Pack of Clean paper
1 x Pack of Cotton swabs
1 x Alcohol bottle
Details pictures :
