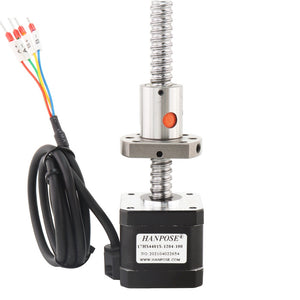

HANPOSE 300mm SFU1204 Ball Screw Stepper Motor 4-lead Nema 17 Stepper Motor 42BYGB40 42BYGB48 42BYGB60
Features:
-[Precise positioning]: Smooth operation, pulse frequency determines motor speed, high torque, high-speed response and large torque.
-[Pure copper coil]: Permanent magnet silicon steel sheet, fine workmanship, solid winding, good punching property.
-[Silicon steel material]: The bearing is made of silicon steel, with more stable output, no rust, low noise and durability, quick start and stop, frequent forward and reverse rotation.
-[Wide application]: Used in 3D printing, SMT machine, automation equipment, medical equipment.
Specification:
Brand |
HANPOSE |
Model |
42 ball screw combination |
Steps/Lap |
200 |
Step angle accuracy |
±5% |
Shaft load |
20000Hours at 1000RPM |
Axial load |
Push: 25N/5.6Lbs. Pull: 65N/15Lbs. |
Radial load |
30N/6.5Lbs. (The point of action is at the midpoint) |
Length |
300mm |
Type |
42BYGB40 |
42BYGB48 |
42BYGB60 |
Phase |
2 |
2 |
2 |
Step angle |
1.8° |
1.8° |
1.8° |
Rated voltage |
2.3V |
