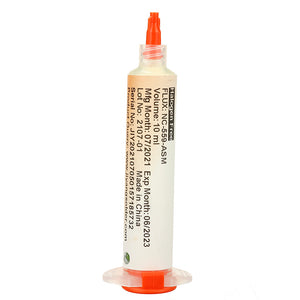

JIYTech 559 Needle Tube Solder Paste is Used for Computer Motherboard Chips, Mobile Phone Chips, CPU Socket Value Balls

Description:

Product Name: Solder Paste

Brand: JIYTech

Model: NC-559-ASM

Viscosity: 50 (Pa·S)

Granularity: 5 (um)

Activity: Neutral

Type: Rosin

Cleaning Angle: Selective Cleaning

Melting Point: 90??/p>

Type: Halogen-free

Working Temperature: 240 (??

Scope of Application: Professional BGA ball, Rework, Soldering Flux

Specification: 10ml

Product Main Ingredients: imported rosin, active agent, organic solvent, thickener, preservative, etc.

Features:

1. The halogen-free environmentally friendly solder paste of this model NC-559-ASM is suitable for value balls (usually used for computer motherboard north-south bridge chips), mobile phone chips, CPU Socket value balls, etc.

2. It needs to be cleaned after hand-painting the value ball (referring to the chip) on a large area.

3. It is used for dot matrix value ball (such as CPU Socket on the computer motherboard) without cleaning.

4. After soldering, the residue is transparent, the tin ball is bright, has a very high SIR value, less smoke, no irritating smell, and no ball running. It does not contain halogen (F/CL/Br/I) substances and other advantages.

5. This paste has moderate viscosity and fine particle size, generally 5-10μm. It is suitable for manual brushes, automatic machine printing and other processes.

6. It can be applied to processes such as reflow soldering and manual ball value at the same time.

Package Included:

1 x Solder Paste

Detail Pictures:
