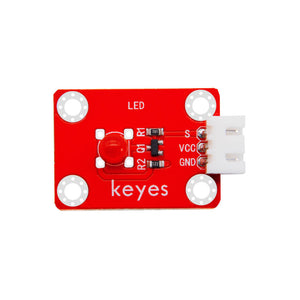

Keyes Brick Red LED Module(Pad hole) Anti-reverse Plug White Terminal for Arduino

Features:

This is a commonly used LED module with F5-blue-blue LED (blue in appearance, blue light) components(Or yellow-yellow, or white-white,or red-red,or green-greenï¼? When controlling, we need to input the high level to the positive electrode of the LED element, the negative electrode is grounded, and the LED will automatically light up.

The module is compatible with various microcontroller control boards, such as the series of microcontrollers for Arduino. The module comes with a 2.54mm anti-reverse plug white terminal. When in use, we can connect to the microcontrollers with DuPont cable. In order to facilitate the wiring, we also specially designed an expansion board that is fully compatible with this module and for Arduino UNO R3 microcontroller. We only need to stack the expansion board to UNO R3 MCU, and use 1 3P double-head XH2.54 plug wire (anti-reverse) ) to connecte to the expansion board, which is simple and convenient.

At the same time, the module comes with 4 3mm diameter positioning holes. It is convenient for you to fix the module to other devices.

Specifications:

Working voltage: DC 3.3-5V

Interface: 2.54mm pitch 3pin anti-reverse interface

Positioning hole size: 3mm in diameter

Control signal: digital signal

Size: 34 x 22 x 12mm

Package included:

1 x Module Board
