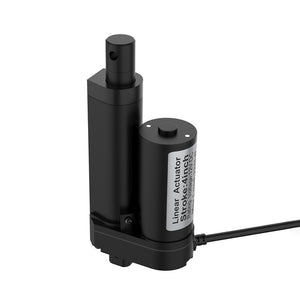

Machifit DC 12V Linear Actuator 50mm Stroke 100/200/300/500/700/1000N Linear Drive Electric Motor Controller
Features:
- [Built-in limit switches]: Self-locking function. The telescopic rod will automatically stop when it reaches the top/bottom. Make sure the motor will not burn empty.
- [Stop Anywhere]: Cut off the power, it can be stop at any position, with machine lock, safe and secure.
- [Metal gears]: powder alchemy technology, pure metal gears, double strength and toughness.
- [Aluminum Alloy Material]: IP54 protection, is a power unit. The surface has undergone 27 polishing processes, and the structure design is tight.
- [Low Resistance More Power-Saving]: the wire uses oxygen-free pure copper as the conductor, low resistance, durable and safe to use.
Specification:
| Material |
Aluminum alloy |
| Input Voltage |
DC 12V |
| Rated power |
20W, Max. 30W |
| Ambient temperature |
-20°C to + 75°C |
| Standard protection class |
IP54 |
| Noise level |
Less than 42dB |
| Stroke length | 50mm / 2inch |
| Retracted length |
155mm |
| Extended length | 205mm |
| Options |
100N 90mm per second / 150N 70mm per second / 180N 50mm per second / 200N 40mm per second / 230N 25mm per second / 250N 15mm per second / 300N 30mm per second / 500N 20mm per second / 700N 10mm per second / 1000N 5mm per second(optional) |
| Quantity | 1pc |
Force And Speed:
100N??0kg / 150N??5kg /180N??8kg / 200N??0kg /
230N??3kg / 250N??5kg / 300N??0kg / 500N??0kg /
700N??0kg / 1000N??00kg
If you would like other stroke, please click to check:
Produce Included:
| 1 x | 12V Linear Actuator |
More Detail:
