Viecar VP001 ELM327 V2.2 bluetooth 4.0 OBD2 EOBD Car Diagnostic Scanner Tool OBD II Auto Code Reader For Android/IOS USB OBD
Note
1.Viecar ELM327 Firmware Version is real V2.2,better than ELM327 V1.5/V2.1
Product Description:

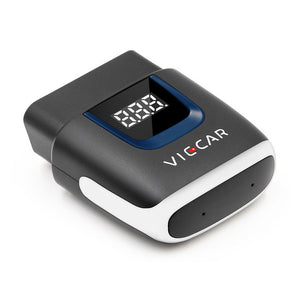

The VP001 is bluetooth 4.0 OBD product with the following features:
1. Compatible with bluetooth 4.0 data transmission With USB2.0 transmission
2. Nine protocols supporting the OBD II/EOBD standard
3. Wide power supply range: 9-36V power supply; reliable overcurrent and overvoltage protection;
4. With standby low power mode to ensure the safe use of car batteries;
5. With digital tube display voltage, current, enhance customer experience
Supported Agreement:
SAE J1850 PWM (41.6 Kbaud )
SAE J1850 VPW (10.4 Kbaud )
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 Kbaud )
ISO 14230-4 KWP (fast init, 10.4 Kbaud)
ISO 15765-4 CAN (11bit ID, 500 Kbaud)
ISO 15765-4 CAN (29bit ID, 500 Kbaud)
ISO 15765-4 CAN (11bit ID, 2500 Kbaud)
ISO 15765-4 CAN (29bit ID, 250 Kbaud)
Supported Vehicle Data:
-Read error diagnostic code
-Clear the fault code (clear the error code and turn off MIL)
-Engine revolutions per minute (RPM)
-Calculated load value
-Coolant temperature
-Fuel system status
-Speed
-Short-term fuel situation
-Long-term fuel situation
-Intake manifold pressure
-Fuel injection advance time
-Intake air temperature
-Air flow rate
-Throttle absolute position
-Oxygen detection voltage associated with short-term fuel state
-Fuel system status
-Fuel pressure
-Fuel consumption monitoring, etc.
Remarks: The number of data items supported by the model year is also different, subject to actual support.
Technical Parameters:
SSID: Viecar
Firmware Version:V2.2
Main control chip: PIC18F25K80
Software platform: support Android /IOS/ Windows
Working voltage: DC 9
Working current: 40mA
Standby current: 5mA
Operating environment: -20 ~ 65 ° C
Storage temperature: -40 to 80 ° C
Dimensions: 56*45.8 *24mm
