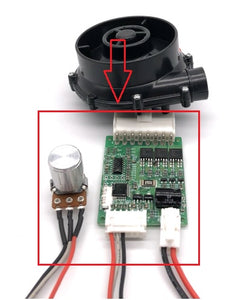

WM7040 DC 12V High Pressure Blower 7.5Kpa Brushless DC Blower's driver ( 12V DRIVER)
Tax included.
Product Usage:
??/span>Sine wave drive three-phase brushless motor, suitable for --- air cushion machine, fuel cell, ventilator air supply, modified car seat cushion air supply, electric heat is sent air, high-grade soldering station smoke, sanding.
Product advantages:
??/span>High pressure (full pressure 7.5KPA), large air volume (240 liters / minute), low noise (45M (A) 1KPa distance 1M far), long life (run 4 hours, stop 30 minutes life up to 25000 hours), The motor movement is designed with a hollow cup structure, featuring high efficiency, high speed and high stability.
??/span>This brushless fan has stable start, small size, low noise, low temperature rise, long service life, high efficiency, accurate accuracy, energy saving and environmentally friendly materials.
Note:
Driver ONLY
Technical parameters:
| Project | Unit | WM7040-12V |
| Operate voltage | V | 7.9-14.8 |
| Idle speed | rpm | 34000+/-5% |
| Idle current | A | 4.6+/-0.2 |
| Maximum air volume | L/min | 240 |
| Maximum wind pressure | cmH2O | 1-65 |
| Coil connection method | Star | |
| Body size | mm | L:70 H:37.5 |
| Weight | g | 90 |
| Holzer angle | 60 | |
| Bearing | NSK Double balls bearing | |
| Blower type | Brushless DC | |
| Rotor magnet pole number | 1 | |
| Noise | db(A) | 45(1M,10CMH2O) |
| Acceleration | m/s2 | <=55 |
| vibration acceleration | mm/s | <=9 |
| Vibration displacement | mm | <=0.025 |
| Using life | Hours | 25000 |
Package Included:
1 x 12V driver ONLY
