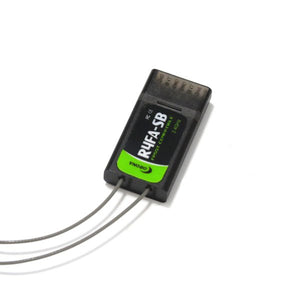

Corona R4FA-SB 2.4Ghz FASST Compatible S.BUS Receiver
Tax included.
Corona R4FA-SB 2.4Ghz FASST Compatible S.BUS Receiver
The CORONA 2.4GHz R4FA-SB Spread Spectrum FASST Compatible Receiver is designed for use with FUTABA’s FASST 2.4GHz transmitters; including the 3PM, 3PKS, 3VCS, 3GR, 4PK(S), TM7, TM8, TM10, TM14 and the T6EX-2.4G, 7C-2.4G, 8FG, 10CG, 12FG. The R4FA-SB receiver supplies a more useful mode for users. The R4FA-SB supports not only FUTABA’s FASST air system, but FASST surface systems as well. This receiver supports up to 7-channels with continuous PPM (positive and negative) output, RSSI output and S.BUS output.
Under S.BUS output mode, R4FA-SB supplies 12 proportional channels and 2 DG channels. Therefore, the R4FA-SB becomes a 14-channel receiver when using S.BUS output.
Description:
Brand: Corona
Item Name: R4FA-SB S.BUS Receiver
Operating Current: 50mA max
Operating Voltage: 3.6 ~10V
Latency:
14mS for independent 4 channel output and S.BUS output @ FASST multi-channel mode
21mS for Continuous PPM output and RSSI output@ FASST multi-channel mode
16mS for independent 4 channel output and S.BUS output @ FASST 7ch mode
24mS for Continuous PPM output and RSSI output@ FASST 7ch mode
14mS for independent 3 channel output@ FASST surface system C1 CODE mode
Sensitivity: about -100dBm
Operation temperature: -10~80 deg C
Dimensions: 41x21x8mm
Weight: 8g
Package included:
1x ORONA 2.4GHz R4FA-SB Receiver
