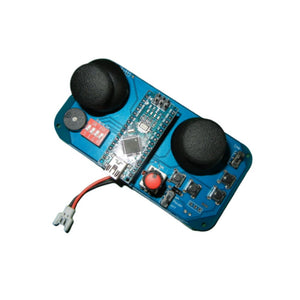

Payne Open Source DIY Remote Control Transmitter Kit With PPM Output For RC Airplanes
Tax included.
Overview:
“Payne DIY Remote Control Transmitter” is designed by Payne Pan as for learning and simple DIY. Now it evolves Version 4, V4 based on Nano, Nano have usb-ttl chip on board , so It is more convenient for uploading firmware, V4 use 1S Li-Po as battery instead of using 4 AAA batteries, and more features are added: "lReset settings", "lCalibrate sticks", "Adjust limits for 1-4 channels".
Payne Open Source RC only output PPM, and it has no RF module, you can use other Tx module or self-made one (such as “Multi Protocol TX” module).
Since it is for study, no license, nor warranty granted.
Open the source in IDE, chose board " Pro or Pro min". processor as "ATmega 328p(5v,16M)",then you can compile and upload the firmware. Hope you enjoy it!
Specification:
Item Name: DIY Remote Control KIT
Control Rod: Throttle + Self Centering
Weight: About 50g
Color: Blue
Upgraded Features:
- Nano comes with usb-ttl, the kit contains a computer usb cable (the old version Pro-mini has to buy the downloader separately).
- Program improvement: Add joystick calibration function; Increase 1, 2, 3 channel ratio setting function; Full reset setting function.
- Comes with 1S lithium battery cable instead of the battery box.
Note:
This transmitter does not support mix control.
This item is unassembled,you need to DIY.
Batteries are not included.
Welding Steps and Source, Click Here
English Manual, Click Here
Package Included:
1x DIY Remote Control KIT (unassembled)
