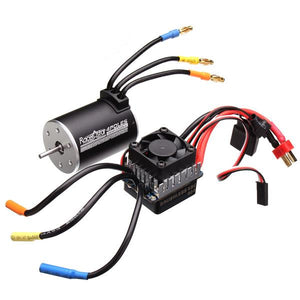

Racerstar 3650 Sensorless Brushless Waterproof Motor 60A ESC For 1/10 Monster Truck Truggy Cars

Description:
Brand: Racerstar
Item: 3650 Brushless Motor & 60A ESC
Waterproof Level: Splash-proof

Motor  Features:
- 4 pole 12 slot hi-torque motor design
- CNC machined 6061 T6 billet aluminum heatsink can
- High purity copper windings maximizes efficiency
- High RPM ABEC 5 oversized bearings
- Universal fit, fits all 1/10 brushless cars; multi-mounting system for M3 screws
- Precision balanced rotor, smoothness for best reliability and maxium RPM
- Stator- super thin (0.35mm) laminations
- Removalbe/replaceable rotor
- Precision engineered for maxium energy coversion

Motor Specification:
Watts: 900
Max Voltage: 13V(3900KV), 16V(3100KV), 22V(2300KV), 24V(2050KV)
Max Amps: 69A(3900KV),  56A(3100KV),  41A(2300KV),  38A(2050KV)
Rotor Poles: 4
Max RPM: 50000
Length: 50mm
Diameters: 36mm
Weight: About 180g
Shaft: 3.17mm
Length of Extend Shaft: 15mm
Connector: 4.0mm Gold

ESC Features:
- Specially desighed for RC car with excellent start-up, acceleration and linearity feartures
- Compatible with sensorless brushless motor
- The strong resistant current capability, excellent heat dissipation
- Multiple protection features:  low voltage cut-off protection for lithium or nickel battery / over-heat protection / throtttle signal loss protection / motor blocked protection
- Easily programmed and compatible with pocket-sized program card

ESC Specifications:

Model	25A	35A	45A	60A	80A	120A
Cont. Current/ Burst Current	25A/100A	35A/120A	45A/180A	60A/320A	80A/480A	120A/600A
Motor Type	Sensorless Brushless Motor
Suitable  Car	1/18, 1/16	1/18, 1/16, 1/14	1/10	1/10	1/8	1/8
Suitable Brushless Motor	≥12T	≥12T	≥9T	≥9T	≥5.5T	≥3.5T
Resistance	0.004ohm	0.003ohm	0.0014ohm	0.0007ohm	0.0005ohm	0.00035ohm
Battery	2 cells Lipo 4-6 cells NiMH	2-3 cells Lipo 4-9 cells NiMH	2-3 cells Lipo 4-9 cells NiMH	2-3 cells Lipo 4-9 cells NiMH	2-4 cells Lipo 4-12 cells NiMH	2-6 cells Lipo 4-18 cells NiMH
BEC Output	5V/2A (analog mode)	5V/2A (analog mode)	5.8V/3A (switch mode)	5.8V/3A (switch mode)	6.1V/3A (switch mode)	6.1V/3A (switch mode)
Dimension	25*30*14.5mm	25*30*18.5mm	32.5*34*24mm	32.5*34*24mm	41*51*36mm	41*51*36mm
Waterproof Level	Splash-proof

For ESC program card, please click

Package Included:
1 X Motor
1 X ESC
2 X Instruction


,,,,,,,,,,,,
