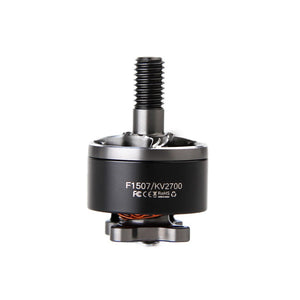

T-Motor F1507 1507 2700KV 3-6S / 3800KV 3-4S Brushless Motor for Cinewhoop RC Drone FPV Racing
Tax included.
T-Motor F1507 1507 2700KV 3-6S / 3800KV 3-4S Brushless Motor for Cinewhoop RC Drone FPV Racing
Specification:
Brand Name: T-Motor
Model: F1507
Item Name: 1507 2700KV 3-6S / 3800KV 3-4S Brushless Motor
Pakcage Included:
1x T-Motor T1057 Motor
1x 1x Motor Nut
1x bag of Screws
Specification:
Brand Name: T-Motor
Model: F1507
Item Name: 1507 2700KV 3-6S / 3800KV 3-4S Brushless Motor
| KV | 2700KV | 3800KV |
| Input Voltage: ( Lipo) | 3-6S | 3-4S |
| Configuration: | 12N14P | 12N14P |
| Shaft Diameter: | 2mm | 2mm |
| Idle Current ( 5V): | 0.6A | 0.9A |
| Peak Current (60s): | 22A | 23A |
| Max. Power: | 519W | 372W |
| Internal Resistance: | 131mΩ | 81mΩ |
| Lead: | 24#AWG 100mm | 24#AWG 100mm |
| Dimension: | 18.9x29.7mm | 18.9x29.7mm |
| Weight: ( Include Cable) | 15.2g | 15g |
Pakcage Included:
1x T-Motor T1057 Motor
1x 1x Motor Nut
1x bag of Screws
