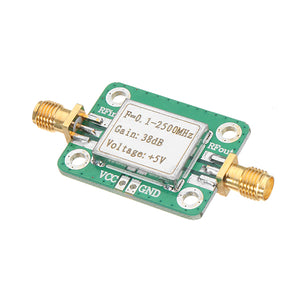

0.1-2500MHz 38dB Gain RF Microwave High Gain Amplifier
Tax included.
Applications:
The amplifier has the advantages of wide frequency range and high gain, which can be used for various RF receiving gain modules to increase the communication distance. Wide-range short-wave, FM radio, remote receiver, cable signal amplifier and other places where small signal RF amplification is needed.
Technical indicators:
Operating frequency: 0.1-2500MHz
Amplifier Gain: 38dB (Typical)
F= 0.1MHz, gain=38dB
F= 500Mhz gain=38dB
F=1000MHz gain=38dB
F=1500Mhz gain=37dB
F=2000MHz gain=35dB
F=2500MHz gain=33dB
F=3000MHz gain=29dB
Maximum output power: +7dBm (5mW) @1dB compression point
Noise figure: 4.5dB (typical)
Supply voltage: +5VDC
System impedance: 50 ohms
Package included:
1 x 0.1-2500MHz 38dB Gain RF Microwave High Gain Amplifier
