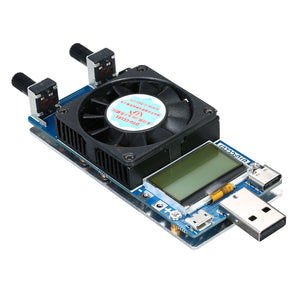

0.2A-3A 35W LCD USB Electronic Load Module Adjustable Battery Tester with Cooling Fan

Introduction:



This USB Electronic Load Tester features LCD display and built with cooling fan, which includes power and temperature protection.



Features:



With only a button for easy operation.

LCD display for clear reading.

With multi-input modes, can set current continuously.

Built-in NTC cooling fan for better heat dissipation.

Includes power and temperature protection.

Compact and portable design, convenient to carry.

Can measure wire resistance by using pressure-drop method.

Wide Testing Range: Input Voltage: 3.6V~30V; Input Current: 0.2~3A.



Specifications:



Material: PCB

Display: 128 * 64

Input Voltage: 3.6V~30V

Input Current: 0.2~3A

Voltage Resolution: 0.001V

Current Resolution: 0.001A

Rated Power: 25W

Max. Power: 35W

Wire Resistance Measurement: Pressure-drop method

Input Interface: USB-A, TYPE-C, Micro USB

Capacity: 0~9999.9AH, 0~9999.9Wh

Protocol Trigger: for QC2.0, QC3.0, FCP, SCP, AFC

Working Temperature: 0~70°C

Item Size: Approx. 11.5 x 4cm / 4.53 x 1.57in

Item Weight: Approx. 57g / 2.01oz

Package Size: Approx. 13 x 9 x 2.5cm / 5.12 x 3.54 x 0.98in

Package Weight: Approx. 64g / 2.26oz



Note:



Please do not use it over 30V, otherwise it will be destroyed.

Please do not modify it by yourself, otherwise the consequences will be borne by the customer.



Package includes:



1 x USB Electronic Load Tester

1 x User Manual (English)
