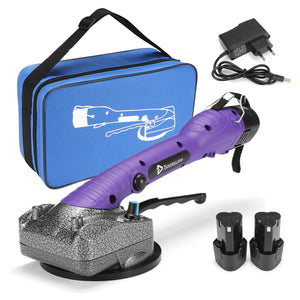

1/2 Battery 12V Automatic Tile Tiling Machine Vibrator Tiler Handheld Tile Construction Use
Tax included.
Features:
1. Suitable for wall tiles, small floor tiles: used for the movement and installation of floor tiles and wall tiles, greatly improving the efficiency of the work.
2. Comfortable grip, high-quality material conforms to the arc of the palm design, making the handle more convenient to use
3. High-efficiency tile tiling machine, can absorb 100KG, high frequency vibration, one second tile
4. Thicken and increase the diameter of the suction cup to 13.5CM, which can absorb up to 100KG of heavy objects
5. High-quality aluminum alloy head shell, upgraded metal head shell, more stable adsorption, stronger vibration frequency sensing, and efficient paving
6. One-button vibration tiling, high-frequency vibration of the tiler replaces manual hammering, greatly improving efficiency
7. The vibration intensity can be adjusted in 10 levels, and the vibration frequency can be adjusted according to the size of the brick body and the thickness of the plaster.
8. Wireless charging is unrestrained, high-quality lithium battery, lasting 15 hours of battery life
9. Automatically lock the handle, upgraded design, the silver handle will automatically lock when you pull it to the end, and you can keep the suction for a long time and work easier when you let go
Specifications:
Machine Head Material: Aluminum alloy, stainless steel
Input: 100V-240V 50-60HZ
Battery capacity: 6000mAh
Plug: US Plug, EU Plug(Option)
Battery quantity: 1pc, 2pcs(Option)
Lithium battery capacitance: 12V
Charging time: 180mins
Working time: ï¼?5H
Vibration frequency: 12000r/min
Adsorption strength: 100Kg
Suction cup diameter: 12.5cm/4.9''
Suitable tile: 60*60, 80*80, 100*100
Product size: 12.5 x 33cm/4.9 x 13''
Packing size: 33.5 x 20 x 13cm/13.2 x 7.9 x 5.1''
Use: renovation team, decoration project
Application: Tile wall tile
Package Included:
1 x Tile Tiling Machine
1 x /2 x Battery(Option)
1 x Charger
1 x Storage bag
1 x User Manual
Instructions:
1. Please check the battery before use to ensure that the battery is fully charged;
2. Turn the inverter switch to the left to the minimum, then start the machine to adjust to the appropriate state according to the requirements;
3. Place the machine on the tile to be laid, hold the suction cup and hold the tile. Press the switch machine to start working and instantly flatten the protruding part of the tile.
4. When working, be sure to hold the suction cup to work on the tile, do not let the machine idling, do not keep pressing the switch during the paste process, and the rhythm is more conducive to paving.
Charging instructions:
1. After receiving the machine, press the switch to adjust whether the frequency switch works. If the indicator light on the machine is not bright, please charge it first and then use it normally. When the charger is connected and charged, the charging indicator on the charger will light up.
2. This product is normally charged for 180mins, full of self-stop, and the indicator light is green or not lit.
3. After the product is fully charged, it can work for more than 15 hours, but in order not to affect the service life of this product, please charge it every day during normal use.
4. When using this product normally, it needs to be charged once a day, such as not charging once a month.
