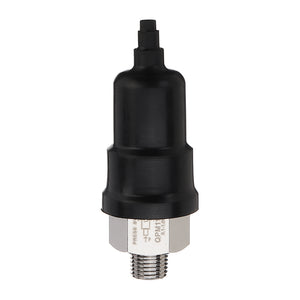

1/4 Adjustable QPM11-NC / QPM11-NO Pressure Switch Wire External Thread Nozzle"
Tax included.
Specification:
Model:QPM11-NC/QPM11-NO
Use Medium: Air
Working Form: Pressure Adjustable
Installation Connection: External Thread
Pressure Range: 0.1-1.0 MPA
Work Tempertature Range: -5~60??/div>
Connection: 1/4"
Work Voltage: 220V/AC,48V/AC,DC
Current: 0.5A
Maximum Power: 24VA, 100VA
Insulation Voltage: 500V, 1500V
Maximum Working Current: 500mA
Max Pulse Count: 200T/min
Service Life: 100 millionscycles
Protection Class: IP54
#1: 1 x Pressure Switch Normally Closed
#2: 1 x Pressure Switch Normally Open
#1: 1 x Pressure Switch Normally Closed
#2: 1 x Pressure Switch Normally Open
Note:Adjust the pressure of the size, please screw the two terminals in the middle of the Hex.
Package Included:
1 x Pressure Switch
