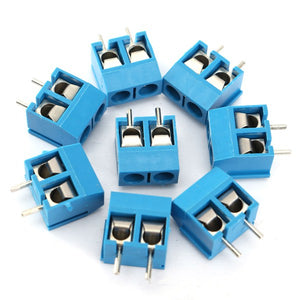

100pcs 2 Pin Plug-In Screw Terminal Block Connector 5.08mm Pitch
Tax included.
Description:
As a kind of connector, the terminal block is an important module in the electric industry.
It is convenient to connect wires.
Electrical Properties:
Rated voltage: 300V
Rated current: 16A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding voltage: AC1500V/1Min
Mechanical Properties:
Temp. Range: -30?ミ+120??br />Max Soldering: +250??for 5 Sec
Torque: 0.5Nm
Specifications:
Material: Screws: M2.5 steel Zinc plated
Contact: phosphor bronze Ni plated or stainless steel
Pin header: Brass, Tin plated
Housing: PBT, UL94V-0
Pitch: 5.08mm Poles: 2P
Color: Blue
Quantity: 100
Package included:
100 x Terminal blocks
