10pcs ESP8285 ESP-1 Serial Wireless WiFi Transmission Module Fully Compatible With ESP8266
Tax included.
Description:

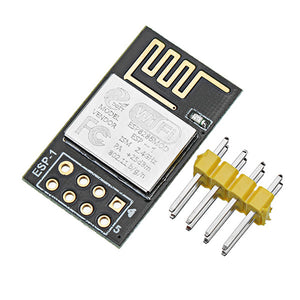

The WiFi module ESP-1 is manufactured by using a high-performance chip ESP8285.
This small chip is encapsulated an enhanced Tensilica’s L106 diamond series 32-bit kernel CPU with a SRAM.
Thus, ESP8285 has the complete function Wi-Fi function; it not only can be applied independent but can be used
as a slaver working with other host CPU. When ESP8285 is applied as a slave, it can start from the onboard Flash.
The built-in high-speed buffer is not only benefiting improve the system performance but optimizing the store system. In addition, ESP8285 can be used as Wi-Fi adapter by SPI/SDIO or I2C/UART interface, when it is applied to other MCU design.
More details, please visit this GitHub link to get the manual and tools, https://github.com/SmartArduino/SZDOITWiKi/wiki/ESP8285---ESP-1
Features:
Ultra-small size;
Support serial to WiFi;
Wireless transparent transmission;
Long distance transmission with ultra-low power;
Support outboard antenna;
Bearing high temperature to 125 ?? compared to the 85??for ESP8266.
Working temperature: -40??125??br />Module size:24.5mm*14mm;
SOC characteristics:
Built-in Tensilica L106 ultra-low power consumption 32-bit CPU, the main frequency can be
80MHz and 160MHz, also support RTOS;
Built-in TCP/IP protocol stack;
Built-in 1 channel 10-bit high precision ADC;
The outside interfaces have HSPI, UART, I2C, I2S, IR Remote Control, PWM, GPIO;
The deep-sleep current is about 10uA, and the cut-off current is smaller than 5uA;
Can be wake-up within 2 ms, and connect to transmit data package;
the consumer power is smaller than 1.0mW (DTIM3) when at standby status;
built-in 1M byte for SPI Flash.
Wi-Fi characteristics:
Support 802.11 b/g/n/e/i
Support three modes: Station, SoftAP, and SoftAP+STA;
Support Wi-Fi Direct(P2P);
Support hardware acceleration for CCMP (CBC-MAC, computation mode), TKIP (MIC, RC4),
WAPI(SMS4), WEP(RC4), CRC;
P2P find, P2P GO mode/GC mode and P2P power management;
WPA/PA2 PSK and WPS;
Support 802.11 i security: pre-certification and TSN;
Support 802.11n (2.4 GHz);
802.1h/RFC1042 frame encapsulation;
Support seamless roam;
Support AT remote updation and cloud OTA updation;
Support SmartConfig function for Android and iOS device SmartConfig.
Peripheral for Module:
1*UART;
1*En;
MAX 4* GPIOs;
Application:
Serial Transparent transmission;
WiFi probe;
Smart power plug/Smart LED light;
Mesh networks;
Sensor networks;
Wearable electronics;
Securit ID label;
Wireless location recognition;
Wireless location system beacon;
Industrial wireless control.
Package included:
10 x ESP8285 ESP-1 Serial Wireless WiFi Transmission Module
