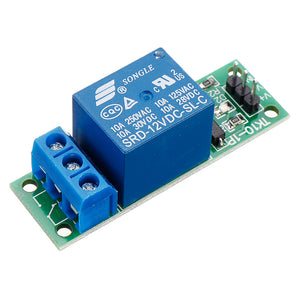

10pcs TK10-1P 1 Channel Relay Module High Level 10A MCU Expansion Relay 12V
Tax included.
Specifications:
Voltage: 12V
Quiescent current <1mA
Dynamic current: 25mA@24V, 45mA@12V, 85mA@5V
Signal: >2V, 0.5mA
Response time: 50mS
Features:
- the control area and the load area and the contact are in accordance with the creepage distance requirement;
- With relay action indication, the suction is bright, and the disconnection is not bright;
- Can be used as a microcontroller development board module, can be used as home appliance control;
- Control DC or AC signal, can control 220V AC load, load capacity up to 10A250Vac or 10A30VDC;
- With a normally open and a normally closed contact, the wiring is more flexible.
Package Included:
10 x TK10-1P 1 Channel Relay Module High Level 10A
