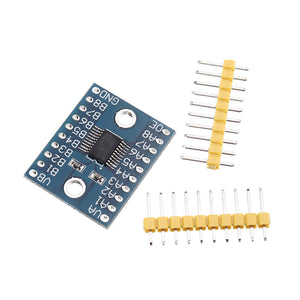

10pcs TXS0108E High Speed Full Duplex 8-Channel Level Translation Module 8-Bit Bidirectional Voltage Converter

Feature:

Module using chip: TXS0108E

High-speed full-duplex 8-channel level conversion module

Provide two-way communication capabilities

VCCA terminal support voltage 1.2V-3.6V

VCCB terminal support voltage 1.65v-5.5v

Common level shifting capabilities such as 3.3-5V 1.8-3.3v are available



Main application:



1. 5V MCU and 3.3V module, 3.3V MCU and 5V module and other communication compatible support

2. Level conversion of single chip and SD card communication

3. Single-chip microcomputer and iic, spi serial device level conversion

4. OE enable IO is active high, it is recommended to connect IO port on low voltage side

Package includes:

10 x TXS0108E Converter
