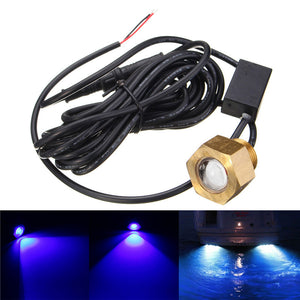

10V-30V NPT LED Underwater Boat Drain Plug Lights Marine Yacht Drainage Lamp

Single LED 6W with 1 LED insides ,total 6W super brightness

Bronze housing materials, anti-corrosion

Standard "1/2 NPT thread type, connected with 2 meters cable

Connected with waterproof connector in order to easy installation, no drilling hole are needed, just screw it into the holes on your boat

Waterproof : IP68

Light Color: Blue(97LM) / White(538LM)

Connect to 10-30VDC battery or power sources only



1. Loosen the drain light

2. Run the cable leads thru the garboard drain opening and screw the drain plug
light assembly into the existing garboard fitting .The garboard fitting is 1/2 NPT

3. Connecting the light wire to a 10-30VDC on/off switch. Plug in the waterproof connector

4. Attach the red lead the positive(+) with the included in line 3 AMP assembly fuse and the black lead to the negative (-)

5. Switch on the light to check if it works well



1 X 6W Marine Yacht Drainage Lights

1 X Cable
