12-24V 2 Car DVR Wired Rear View Backup Camera System and 7 Inch Monitor For Truck RV Bus

Description:

1. Two Night Vision Waterproof Rearview Back Up Reverse Cameras --Auto Water-resistent Camera Lens, with 18 individual Infrared (IR) LED.  Effective range up to 15m.

2. 7 Inch TFT LCD widescreen wireless monitor-- high resolution image, full color display

3. 2 Cameras 2 Video Inputs--A camera mounted on the front of the car and the second in the back of the car.  You can switch v1/V2 button to view the back and front of cars

4. Wired connection to guarantee safe and stable backup parking system

5. IP 68 waterproof. Hard Metal Cased Camera; Waterproof and Mud proof; It can last for longer without heating up, so you can show the rearview all time.



Feature:

7 inch color monitor

Resolution: 800*480

System: PAL/NTSC auto

Power: DC9V-35V

Power consumption: About 6W

Video: 2 video inputs

Rear view pictures can be overturned by the butons of Up / Down / Left / Right

All functions can be operated by remote control, or buttons on the device

Weight: About 0.7KG



Backup camera:

Image Sensor: 1/3 inch SONY CCD

Lens: F = 2.15mm F4.05

TV Line: 480

View angle : 120 degrees

Operating voltage: 9V-35V

Operating temperature: -20 ??-80 ??/span>

External type: Square 26 * 31mm

Output line: Power, signal lines, ground

Video Output: Composite video cable (75 Euro)

Operating temperature: -20 ??~ + 80 ?? RH95%

Storage temperature: -40 ??~ + 100 ?? RH95%

IP68 waterproof, shockproof,  high temperature and high humidity resistance

Auto white balance



Note:
The video cable up to 10 meters, and with 10 meters power cable, easy to install

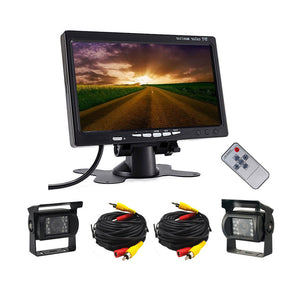

Package Included:

2 x Backup Cameras

1 X 7 Inch Monitor

2 X Video Power Cable

1 X Remote Controller

1 X Mount Bracket

1 X User Manual
