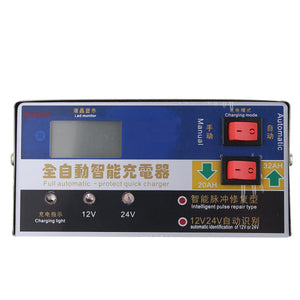

12V/24V 400W 100AH Full Automatic-protect Quick Charger Smart Pulse Repair
Tax included.
Description:
This product is applicable to the 12V/24V battery.
Advanced pulse width modulation (PWM) technology is used to automatically charge batteries through a 4-stage charging cycle.
The battery life can be significantly improved by digital pulse repairing method for the power chips of micro computers.
Constant voltage charging will be arranged to provide various protections and avoid over-voltage, over-current, over-beating and electrode-positive, etc.
When the red indicator light of charging stops flashing or is dark, and as well as the current indicator fell to about 1 bars condition, the charging mode will change to floating charging, means the battery charging being finished.
The 12V input when automatic charging mode, full electric voltage of 13.8V to 14.3V, about 16V input when manual charging mode, must be artificial monitoring in case of overcharge if manual mode charging, suggest stop charging when the battery heating.
Do not block cooling hole or use the charger with the cooling fan off.
Specification:
Name: Full Automatic-protect Quick Charger
Model: WLSH-20S
Color: As pictures
Input Voltage: AC 150-250V 50-60Hz
Capacity: 100AH
Size: 185*142*70mm
Full Conversion Rate: 93%±3
Working Temperature: -30°+40??/span>
Type: Intelligent pulse repair type
Note:
Due to the manual measurement,there might be some error.
Distribute the adapter according to your country.
Package Included:
1 X Quick Charger
1 X Manual
