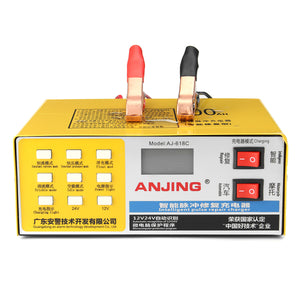

12V/24V LCD Display Battery Charger Intelligent Pulse Repair Dry Wet Smart

R 1,434.48
Unit price per
Save R 1,434.48

Tax included.

Description:

1. This product is applicable to the 12V/24V 100 AH lead acid battery ,including GEL,UPS,

wet battery and maintenance-free battery.

2. Advanced pulse width modulation (PWM) technology is used to automatically charge batteries

through a 4-stage charging cycle

3. When the red indicator light of charging stops flashing or is dark,and as well as the

current indicator fell to about 1 bars condition,the charging mode will change to floating charging,

means the battery charging being finished.

4. has strong fan,the speed can be 4500/min

5. Stable performance,stopped automatic when charge full,pulse auto revive and maintenance battery.

Specification:

Model: AJ-618C

Color: yellow

Voltage range: AC 150-250V

working frequency: 50-60Hz

Conversion efficiency: 93%

Working temperature: -30??35??/span>

Charging voltage current: 12V/24V 10A

Introduction of 5-stage Mode:

1.ldle mode: when there has no load connected with charger,

the LED Screen will show voltage only,the power is about 2W;

2.Constant current: means the battery voltage is lower than the set voltage of charger,

then the charger supply constant charging current to maintenance both battery and battery charger;

3.Constant Voltage: advanced pulse width modulation (PWM) technology,control the

charger's current and output voltage accurate,avoid overcharge;

4.Floating charge mode: when the battery is going to be charged full,the charger

will stop charging,but still supply constant floating voltage and small current to battery;

5.Trickle charge mode: when the battery voltage and current is approaching the set voltage

and current,it will turn to trickle floating charge from automatic mode,it means charge full,

also can be charged with floating mode.

Introduction of 4 Protection:

1.Overheating protection:when the temperature of charger is over 105 ° C,

the charger will stop working,when the temperature reduce to 80° C or turn off
the power 10 minutes the charger can work again;

2.Short circuit protection:when there has short circuit the charger stopped output and has a beep alert;

3.Low voltage protection:when the battery single cell voltage is lower than 1.5V the

charger can't start and has a beeb alert,avoid damage battery;

4.Reverse connection protection: when the polarity of charger is adverse with battery,

the charger will close automatic and has beeb alert.

Note:

1. The 12V input when automatic charging mode,Full electric voltage of 13.8V to 14.3V,

about 16V input when manual charging mode,must be artificial monitoring in case of overcharge

if manual mode charging,suggest stop charging when the battery beating.

2. In winter(under 0 ° C),use automatic mode to charge full first then use manual mode for 0.5-1 hours.

3. Do not block cooling hole or use the charger with the cooling fan off.when the battery shell has temperature

must stop charging!using manual mode can't more than 1 hour!

Package Included:

1 X 12V/24V Battery Charger
