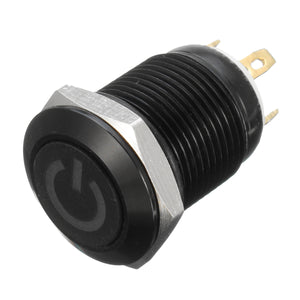

12V 4 Pin 12mm LED Metal Push Button Momentary Power Switch Waterproof
Tax included.
Description:
Made of brass nickel plated material, strong and durable.
High-grade appearance and nice touch feeling.
Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use.
Copper plating silver terminals for good conductive properties.
Momentary type, push it-on, release it-off.
Metal button head durable for longstanding press.
Specification:
Product name: Push Button Switch
Material: Brass nickel plated
Color: Black
LED color: White/Yellow/Red/Green/Blue
Switch Rating: 2A 36V
LED Voltage: 3V (When the voltage is higher than3V, you need to add external resistor.)
Operation Type: Momentary type (push it-on, release it-off)
Hole size: 12mm
Size: approx.Length: 21.3mm Width: 14mm
Note:
1. We provide clear pictures, measurements where possible.
Please check as much as possible to make sure the item is the one that you need.
Please check as much as possible to make sure the item is the one that you need.
2. Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)
3. Instruction is not included,professional installation is highly recommended.
Package Included:
1 X LED Button Switch
