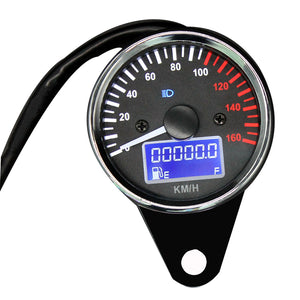

12V Motorcycle Refit Multi-function Digital Oil Meter White Pointer Speedometer
Tax included.
Description:
Large anti -UV & Anti-glare LCD screen
All-in-one design,Speedometer/Odometer/Oil Level/Turn Signal, High Beam, Neutral Gear Indcator.
Using chip technology for most of the components
Multiple indicator functions as the L/R Turn Signal, High Beam,Neutral Indicator
High withstand voltage up to 100V
Waterproof & Anti-vibration
Specification:
Weight: 280G
Material: Iron
Color: Black/Chrome
Working Voltage : 8-18V
Rated Voltage: DC 12V
Working Temperature: -20 - +70??/span>
Storage Temperature: -30 - +80 ??/span>
Speed Range: 0-160km/h
Digital Display odo Distance Range: 0-99999.9km
Fitment:
Fits for most motorcycle
Please allow 1-2 cm difference due to manual measurement.
Please check size to make sure the fitment before bidding.
Wiring Diagram:
Black Wire -Battery Positive
Green Wire-Battery Negative
Blue Wire-Headlight Positive
Orange Wire-Left Turn Signal
Light Blue Wire-Right Turn Signal
Green/Red Wire-Neutral Negative
Blue/White Wire-Oil Level Signal Line
Note:
No friction or contact between the hall probe and the magnet
Engine rotate speed comes from the ignition signal.
The sensor wire is normally contacted with the positive side of the magnetor or directly wired on the rectifier
The sensor wire is normally contacted with the positive side of the magnetor or directly wired on the rectifier
Oil Mass can be wired on the original sensor
Do NOT wired on the headlight if it had been modified as the HID Xenon light.
Instead, connect it on the headlight control wiring
Instead, connect it on the headlight control wiring
Package Included:
1 X Speedometer
