12V Power DIY Glow Tube Clock Module Board Motherboard For IN14 Tube Digital Clock With Shell



1. Input: 11V~13V, 1A, DC power (5.5-2.1)

2. Using STM8S005 as the main control, built-in procedures, welding light pipe can be used directly.

3. Support seven clock color display (containing RGB lamp).

4. The use of imported high-precision clock chip, a year less than 1 minutes error

5. Using integrated IC drive program, the display is more stable and reliable

6. Size: 187x48mm

7. Function: 24 hour mode, time display, anti poisoning program (every 10 minutes refresh the monitor), no alarm, remote control is not supported,

No time switch machine





Set Time: click 'SET' key into seting time.lick 'Up', 'Down'to set time, and click 'Set' to finish.

Set black light color: Click 'Up' into color tuning mode (every day change color). click 'Down' into fixed color.

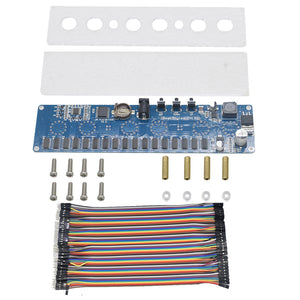

1 x Circuit board that has been welded and debugged (without glow tube)

1 x Cable

1 x Shell kit

Display effect: (for reference only)
