150P 24Pin 12V DC Input Peak 150W Output Realan Mini ITX Pico PSU DC ATX PC Switch DC-DC ATX Power Supply For Computer
Tax included.
Size Conversion
Inches
Centimeters
Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.
null
Description:
150 Watt Output 12 Volt DC Input
Fanless design, 100% silent
24 pin ATX connector, Plugs directly into the ATX connector
Solid Polymer Caps on the PCBA, Long life.
Perfect DC PSU for mini ITX Motherboards
Feature:
Size (L*W*H): 55mm*40mm*10mm(approx)
Adopt industrial solid capacitor, ideal for being used in harsh evironment
High performance with high heat-stand feature, more reliable
Without fan for 100% mute working
Compact design, special for mini-itx and 1U case
Modules can reach 150W, and it must be accompanied by the power adapter
Specifications:
Input voltage: +12V/DC(11.4-12.6V)
DC input: 2.5mm inner diameters, 5.5mm outer diameter
Input Current: Max. 17A
Output Power: 150W
Power Efficiency: > = 85%
Working temperature/humidity: 15??to 35??/ 45%-75%
Reposition temperature//humidity: -40??to +70?? 10%-90%
Atmospheric pressure: 86Kpa-106Kpa
| Output voltage | Min (V) | Avg(V) | Max (V) | Ripple (mV) | Standby current | Avg(A) | Peak (A) |
| +3.30V | 3.14 | 3.3 | 3.47 | 50MAX | 0 | 4 | 6 |
| +5.00VSB | 4.75 | 5 | 5.25 | 50MAX | 0.1 | 1.5 | 2 |
| +5.00V | 4.75 | 5 | 5.25 | 50MAX | 0 | 4 | 6 |
| +12. 00V | +11. 40 | 12 | 12.6 | 120MAX | 0 | 5 | 8 |
| -12. 00V | -11. 40 | -12 | -12.6 | 120MAX | 0 | 0.1 | 0.2 |
Applications:
MINI computers, one computer, POS, digital set-top boxes, ITX chassis, network servers, advertising, banking terminals, etc.
Package includes:

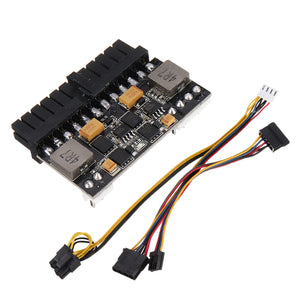

1 x DC-ATX 150W Module (with cable)
FIVE GROUPS OF POWER OUTPUT
