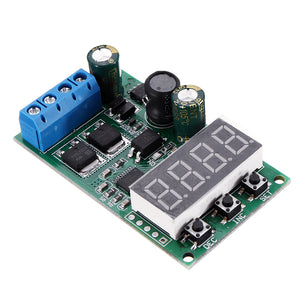

15A DC 6-30V Lead-acid NiMH LiFePO4 Li-ION Li-PO LiFe Polymer Lithium Battery Discharge Protection Board Module PS9DC01

Features:



- Photoelectric isolation can effectively protect the circuit board.

- 1% high-precision divider resistors make the measurement voltage more accurate.

- Voltage accuracy and resolution is 0.1V, and with a calibration function.

- Reduce the brightness of the digital display, save energy and protect your eyes.

- Parameter power-down save, to avoid duplicate settings.

- Set the Start Discharge Voltage(H) and Cutoff Discharge Voltage(L) to the lowest (<6V), which can be used as a voltmeter to measure 6-30V voltage.

- It has Energy-Saving Mode and restore Factory-Settings.

- 3 control buttons, 4 bit digital display, 1 LED charge indicator.



Specifications:



Operating voltage: DC 6-30V.

Operating current (12V):

Standard mode, standby current 7MA; Working current 11MA;

Energy-Saving mode,Standby current 4MA; Working current 7MA.

Mode: Standard-Mode, Energy-Saving Mode, Setup-Mode, Voltage-Calibration, Factory-Settings.

Can protect any 6-30V battery discharge, double N-MOS maximum load current: 15A (6-15V); 10A (15-30V) .

The default Cutoff discharge voltage 11.8V, Start discharge voltage is 12.2V(for 12V lead acid battery).

Size: 60 x 35x 16mm



Applications:



Car battery discharge protection

Solar battery discharge protection

Mobile Loadspeaker

Lead-Acid Battery discharge protection

Electric Bicycle discharge protection

UPS Uninterruptible power supply

Portable Industrial and Medical Equipment

Standalone Battery Uninterruptible power supply

Lead-acid  /Ni-Cd / Ni-MH / Li-ION  /Li-PO /LiFe/PolymerLithium battery



Package Included:



1 x 15A DC 6-30V Battery Discharge Protection Board Module
