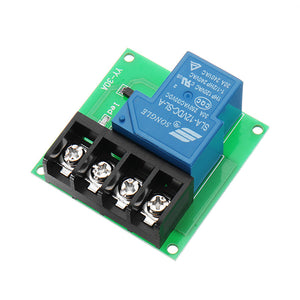

1CH 12V 30A Relay Module High Power Relay Control Board Single Switch
Tax included.
Description:
1: Model: YY-30(12V)
2: Output capacity: AC 250V/30A, DC 30V/30A
3: Using the industry's top quality ultra-small optocoupler, strong anti-interference ability, stable performance
4: 9.5mm black barrier type terminal block, standard 30A terminal, stable and reliable, reliable quality
5: Board size: 51x50.8mm
Module Interface Description:
1. DC+: External DC power supply positive
2. DC- : External DC power supply negative
3. NO: Relay normally open interface, it is vacant before closed the relay, after that short circuit with COM.
4. COM: Relay public interface
Package included:
1 x 1CH 12V 30A Relay Module
