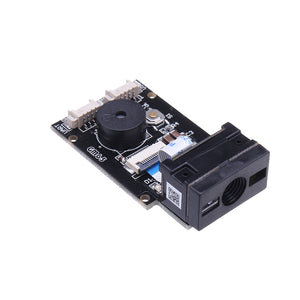

1D 2D Code Scanner BarCode Reader QR Code Reader Module
Tax included.
Features:
1. MG65 barcode reading module, a high-performance scanning engine, not only easy
Read all kinds of 1D barcodes, and can read 2D barcodes at high speed, for linear barcodes
Very high scan rate, easy for paper barcodes and barcodes on the display
scanning;
2. The MG65 barcode reading module is developed on the basis of image intelligent recognition algorithm.
Advanced barcode decoding algorithm makes it easy and accurate to read bar code symbols.
It simplifies the development of barcode reading products. The MG65 is built to meet the most demanding sweeps
Requirements, provided in a completely dark environment, and consistent over an extended temperature range
Scanning performance.
- Low power consumption of the module, operating current less than 150mA, integrated design, small size;
- Support TTL232 and USB (Chinese free drive) interface;
- Supports all common 1D barcodes and common 2D codes to directly identify the phone screen.
- The value read can be displayed directly on a text file such as WORD.
Specifications:
Optical system: CMOS
Capture light source: 617nm LED
Lighting source: 6500K LED
Scanning angle: 34° (horizontal) 26° (vertical)
Minimum contrast: 30%
Resolution: >0.1mm (4mil)
Voltage: 5V
Interface: USB, URAT
Reading angle: 360° rotation; 60° deflection; 65° inclination
Current: 120mA at scan/30mA during standby
Working temperature: 0°C-50°C
Working humidity: 10%-80%
Type that can be read:
Read barcode type (1D): UPC/EAN, UPC/EAN with supplementals, BooklandEAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat
Read the QR code type (2D) : QR Code , PDF417, Data Matrix
Note:
Please connect USB, find a barcode or QR code to scan (not the QR code in the manual), the place where you can input text on the computer will be displayed directly, such as WORD, chat window
Package Included:
1 x QR Code Reader Module
