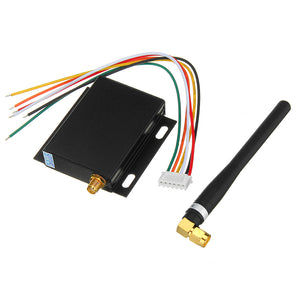

1W LORA6102AES High Power Long Distance Serial to Wireless Module Transparent Transmission Antenna
Tax included.
Introduction:
The LoRa6102AES is an industrial-grade wireless serial transmission module with an aluminum alloy casing. It is based on the high-power wireless data transmission module developed by Semtech's SX1276/1278 chip. The device uses LoRaTM spread-spectrum modulation frequency hopping technology for efficient receiving sensitivity and Superior anti-interference performance, plus external integrated PA device to make its communication distance and receiving sensitivity far exceed the current FSK and GFSK modulation. The block performs AES128 encryption processing on wireless data, making data transmission more secure and superior. Anti-interference.
Feature:
Feature:
The airborne transmission distance can reach 8000 meters @low rate
Operating frequency band: 433/470 (1W) MHz, 868/915 (500mW) MHz
Up to 40 communication channels
Diversified serial port parameters
LORA modulation mode
TTL/232/485 level interface
Sensitivity up to -139 dBm
Output power: 1W (+30dBm), 500mW (+27dBm)
Operating voltage range: 3.3 ~ 6.5 V
Operating temperature range: -40 ~ +85 °C
Application:
Wireless remote telemetry
Remote meter reading
security system
Industrial data collection
Home automation telemetry
Wireless data communication
Access control system
Robot control
Performance parameters:
Note: The module is internally regulated by 3.3V LDO. The CS pin and SET pin control are 3.3V levels. The serial TXD and RXD pin outputs and inputs support 3.3V levels.
| Parameter | Minimum | Typical | Largest | Unit | Condition |
| Operating conditions | |||||
| Operating voltage range | 3.3 | 6.5 | 5 | V | |
| Working temperature range | -40 | 25 | 85 | ??/span> | |
| Current consumption | |||||
| Receiving current | <20 | mA | TTL level | ||
| Emission current | <600 | mA | @30dBm | ||
| Sleep current | <40 | uA | |||
| Radio frequency parameter | |||||
| Frequency Range (different specifications) |
414.92 | 433.92 | 453.92 | MHZ | @433MHz |
| 470.92 | 490.92 | 509.92 | MHZ | @490MHz | |
| 849.92 | 868.92 | 888.92 | MHZ | @868MHz | |
| 895.92 | 914.92 | 934.92 | MHZ | @915MHz | |
| Modulation rate | 91 | 656 | 17353 | bps | LoraTM |
| Transmit power range | 0 | / | 30 | dBm | @433MHz @490MHz |
| 0 | / | 27 | dBm | @868MHz @915MHz | |
| Receiving sensitivity | -139 | dBm | @91bps | ||
Package includes:
1 x Long Distance Serial to Wireless Module
1 x Antenna
1 x Cable
