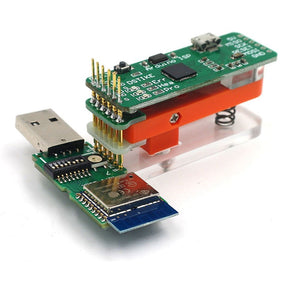

1x6P 2x3P DSTIKE Bootloader Flash Tool Board Micro-USB IDE
Tax included.
Size Conversion
Inches
Centimeters
Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.
null
1#: 1x6P
2#: 2x3P
What is it?
It is a bootloader flash tool for Ardui o products. If you do not understand what is bootloader I suggest you have a look this:
Why did you make it?
Now I have some Arudino products like Wifi Duck... Bootloader is a problem during Ardui o develop process. I want to share my exprience for those Ardui o developers. Now I only use Ardui o Leonardo as my target but theoretically other target is also OK.
What makes it special?
It is pre-flashed with Ardui o ISP software
- Connect Flash Tool and computer via a Micro-USB cable.
- Connect Flash Tool to the target board.
- Indicate LED will turn off for about 10 seconds.
- Wait until LED turn up .
- Open Ardui o IDE and select the item in the Tools->Board menu that corresponds to the board on which you want to burn the bootloader (Ardui o Uno,Nano,Leonardo...).
- Select Port COMXX(Ardui o Leonardo) .
- Select the Ardui o as ISP(Atmega32u4) in the Tools>Programmer menu.
- Use the Burn Bootloader command.
- You will see Indicate LED is twinkling when burning process start.
- Twinkling LED will be off and software says 'Finish' at the same time when buring process finish.
Package Included:
1 x 1x6P/2x3P DSTIKE Bootloader Flash Tool
