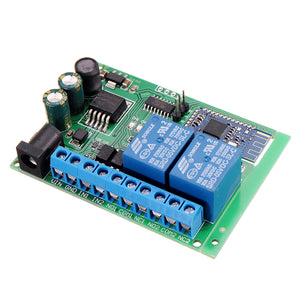

2 Channel IOS Android bluetooth Relay 2.4G RF Wireless Remote Control Switch IOT Module Board for Smart Home

R 756.00
Unit price per
Save R 756

Tax included.

>>>Manual: Click here to open<<<

Description:

1. Operating voltage: power supply 1,DC 6.5-25V; power supply 2,DC 5V.

2. Operating Current: Standby current (all relays closed) 13mA, 1 relay open 44mA, 2 relays open 76mA

3. Bluetooth protocol: Bluetooth Specification V4.0 BLE.

4. Based on TI CC2541 chipset, Support android 4.3 or above,phone 4s or above (IOS8 or above) mobile control.

5. 2.4GHz-2.48GHz unlicensed ISM band.

6. send commands via Android/IOS Bluetooth APP control relay turned on and off (we provide Bluetooth APP, you can also use your own APP to control relays, sending commands to control). It can also be triggered by an external pulse signal.

7. "Momentary" "Self-locking" "Interlock" "open" "close" 5 Commands.

8. External trigger input, opto-isolated switch, low pulse inputs.

9. Size: 70x54x19 mm

10. Weight : 46g

NOTE:

1. phone must support bluetooth 4.0, such as galaxy S4 (android 4.3),phone 4s(IOS8).

2. Bluetooth 4.0 without matching, so when open bluetooth mobile phone cannot search equipment.

3. Without password, open software direct connection.

4. Baud rate is 9600BPS, Please do not modify the Bluetooth baud rate, otherwise the relay will not work

5.APP:

Android : Installing "BluetoothLeGatt" APP

IOS : download "LightBlue" software

Typical Applications:

Home lighting system

Remote control switch

Remote locking

Garage door remote control

Smart Home / Home Automation

DC 5-24V LED lighting

Fluorescent lamp

5-24V DC Motor

Fluorescent lamp

Automotive electronics

Industrial automation and control

IOT

Wiring Diagram:

1. DC 6-25V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC 6-25V equipment

2. DC 5V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, toy car and other DC 5V equipment

3. DC 1-100V OR AC 85-265V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC AC equipment

4. All kinds of motor reversing control: DC 1-100V or AC 85-265V DC/AC Motor

BT23A02_14

Package Included:

1 x 2 Channel IOS Android bluetooth Relay 2.4G RF Wireless Remote Control Switch
